Join the blocks to build your lighting effect.
LED Block Modules
Led blocks may be small but with 3 to 6 ultra bright wide angled leds per block they can achieve high luminous outputs.
Used to illuminate signage they are perfectly suited to giving halo effects to built up letters, channel letters and general led lighting signage illumination.
With an IP68 rating they are ideal for either indoor or out door applications replacing more conventional forms of lighting such as neon, cold cathode and fluorescents.
Products
 |
 |
 |
| LED Block Module | LED Block Module | LED Block Module |
Product Variations
| Colour | LED Quantity | Dimensions | Wattage Per Block |
|---|---|---|---|
| WHITE | 3 | 60mm (L) x 20mm (W) x 10mm (H) | 0.24W |
| BLUE | 3 | 60mm (L) x 20mm (W) x 10mm (H) | 0.24W |
| GREEN | 3 | 60mm (L) x 20mm (W) x 10mm (H) | 0.24W |
| RED | 3 | 60mm (L) x 20mm (W) x 10mm (H) | 0.24W |
| YELLOW | 3 | 60mm (L) x 20mm (W) x 10mm (H) | 0.24W |
| WHITE | 4 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| BLUE | 4 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| GREEN | 4 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| RED | 4 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| YELLOW | 4 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| RGB | 6 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| WHITE | 6 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| BLUE | 6 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| GREEN | 6 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| RED | 6 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |
| YELLOW | 6 | 32mm (L) x 32mm (W) x 10mm (H) | 0.48W |

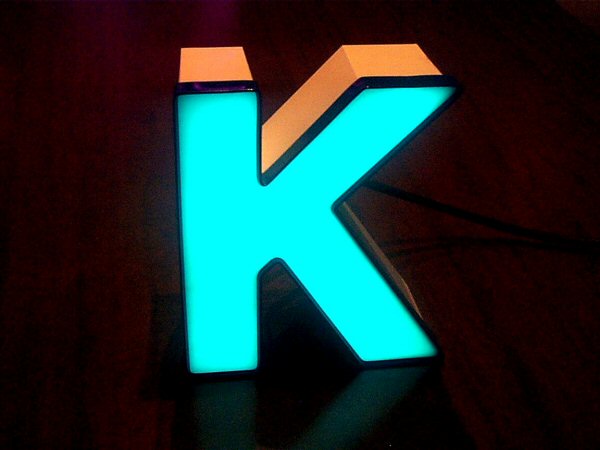

Examples
 |
 |
 |
 |
